Description

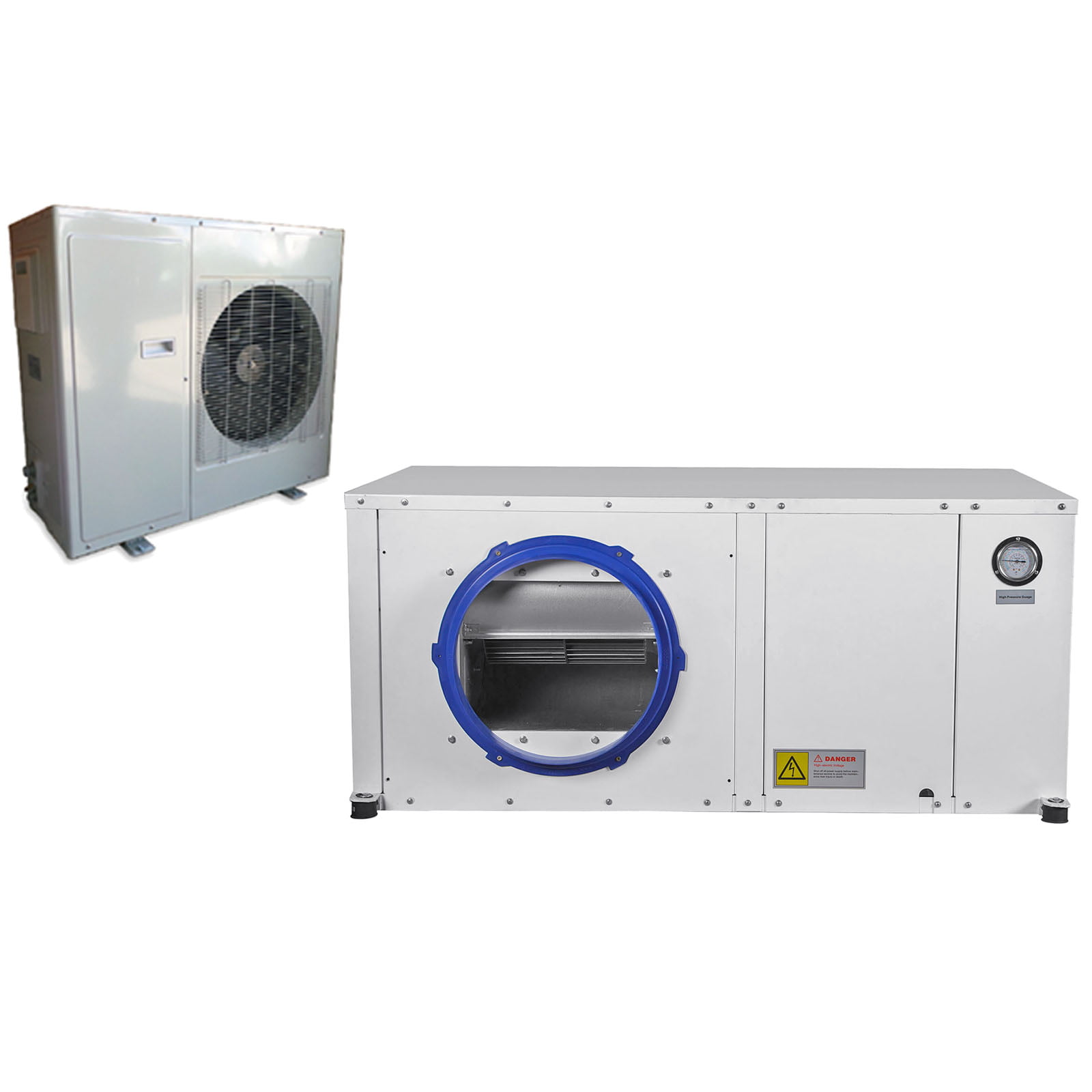

OptiClimate PRO3 Split Cooler
3500 PRO3 Specs
The OptiClimate 3500 PRO 3 Split air-cooled air conditioner has a cooling capacity of 3,5kW and has 2x1500W heating elements.
The standard split unit of the OptiClimate 3500 PRO3 can bridge a distance upto 15 meter between the indoor unit and outdoor unit. The OptiClimate Split Units come standard with a quick-connect 8 meter cooling hose which consists of a set of two hoses. If a longer cooling hose is needed, this can be ordered upto a maximum distance of 15 meters. For example, if 15 meter cooling hose is needed for a OptiClimate 3500 PRO3 Split you should order this cooling hose 7 times (for 7 meters extra).
- Name: OptiClimate 3500 PRO3 Split
- Voltage: 230V
- Cooling capacity: 3500W
- Power consumption: 820W
- Phase: 1o2*
- Connection:
- 1 phase D16 2,5mm2 de cable
- 3 phases D10 2,5mm2 de cable
- Heating elements: 2x1500W
- Dehumidifies capacity: 55 L/24h**
- Dimensions Int. Unit: 100x50x42
- Weight Int. Unit: 57kg
- Dimensions Ext. Unit: 55x36x49
- Weight Int. Unit: 16 kg
** At 80% humidity and a ambient temperature of 30°C.
6000 PRO3 Specs
- Name: OptiClimate 6000 PRO3 Split
- Voltage: 230-400V
- Cooling capacity: 6000W
- Power consumption: 1590W
- Phase: 1o3*
- Connection:
- 1 phase D25 4,0mm2 de cable
- 3 phases D10 2,5mm2 de cable
- Heating elements: 3x1500W
- Dehumidifies capacity: 100 L/24h**
- Dimensions Int. Unit: 115x53x43
- Weight Int. Unit: 70kg
- Dimensions Ext. Unit: 95x36x83
- Weight Int. Unit: 33 kg
** At 80% humidity and a ambient temperature of 30°C.
10000 PRO3 Specs
The standard split unit of the OptiClimate 10000 PRO3 can bridge a distance upto 15 meter between the indoor unit and outdoor unit. The OptiClimate Split Units come standard with a quick-connect 8 meter cooling hose which consists of a set of two hoses. If a longer cooling hose is needed, this can be ordered upto a maximum distance of 15 meters. For example, if 15 meter cooling hose is needed for a OptiClimate 10000 PRO3 Split you should order this cooling hose 7 times (for 7 meters extra).
- Name: OptiClimate 10000 PRO3
- Voltage: 230-400V
- Cooling capacity: 10000W
- Power consumption: 2150W
- Phase: 1o3*
- Connection:
- 1 phase D35 4,0mm2 de cable
- 3 phases D20 2,5mm2 de cable
- Heating elements: 3x2000W
- Dehumidifies capacity: 170 L/24h**
- Dimensions: 115x56x50
- Weight: 120kg
** At 80% humidity and a ambient temperature of 30°C.
15000 PRO3 Specs
OptiClimate 15000 PRO3 Split air-cooled airco. The standard split unit of the OptiClimate 15000 PRO3 can bridge distances up to 15 metres between the indoor unit and the outdoor unit. Comes with a quick-connect 8-metre cooling hose.
The standard split unit of the OptiClimate 15000 PRO3 can bridge a distance upto 15 meter between the indoor unit and outdoor unit. The OptiClimate Split Units come standard with a quick-connect 8 meter cooling hose which consists of a set of two hoses. If a longer cooling hose is needed, this can be ordered upto a maximum distance of 15 meters. For example, if 15 meter cooling hose is needed for a OptiClimate 15000 PRO3 Split you should order this cooling hose 7 times (for 7 meters extra).
- Name: OptiClimate 15000 PRO3
- Voltage: 400V
- Cooling capacity: 15000W
- Power consumption: 3100W
- Phase: 3*
- Connection:
- 3 phase D25 4,0mm2 de cable (the compressor of this unit is divided over 3 phases)
- Heating elements: 3x2700W
- Dehumidifies capacity: 270 L/24h**
- Dimensions: 121x70x54
- Weight: 160kg
** At 80% humidity and a ambient temperature of 30°C.
