Description

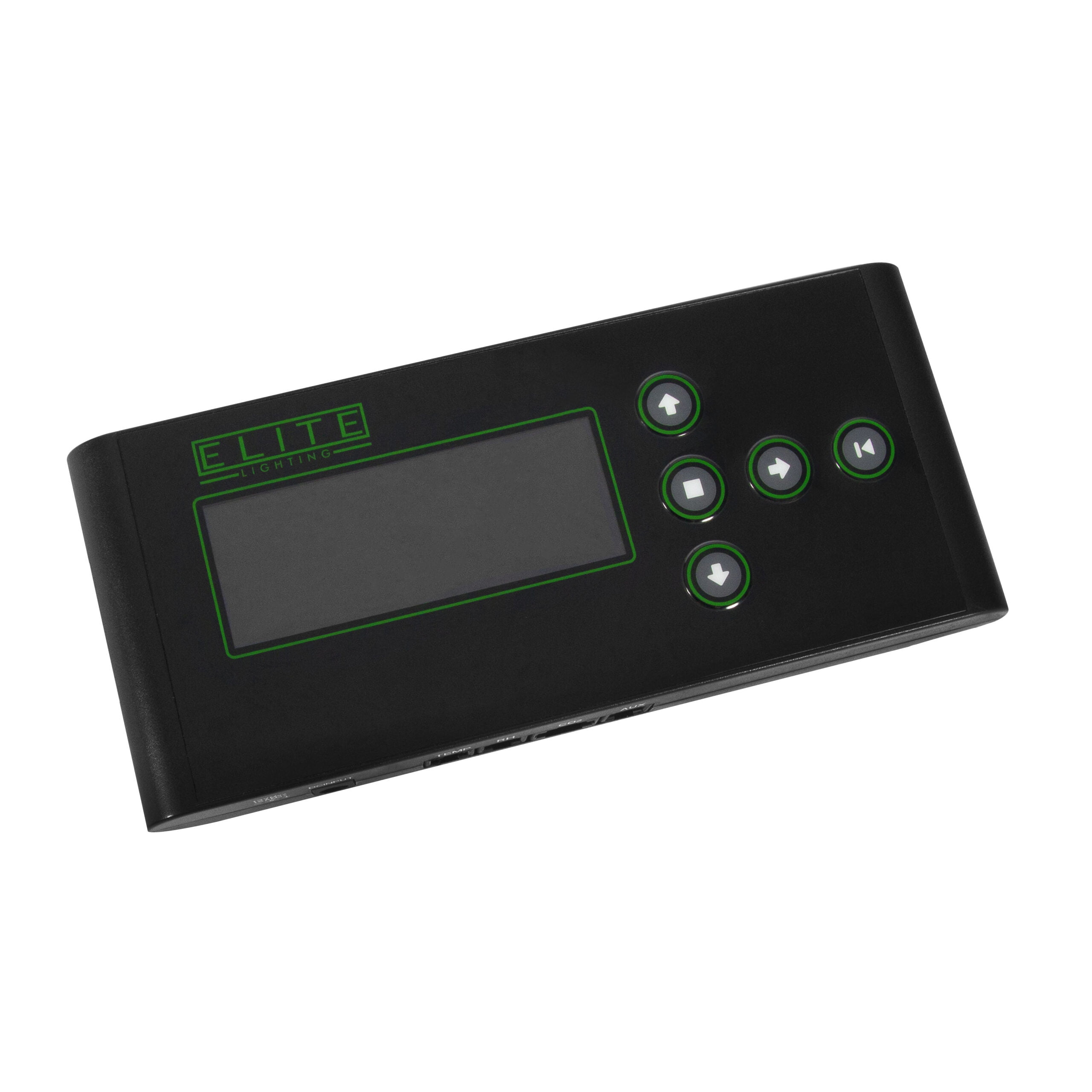

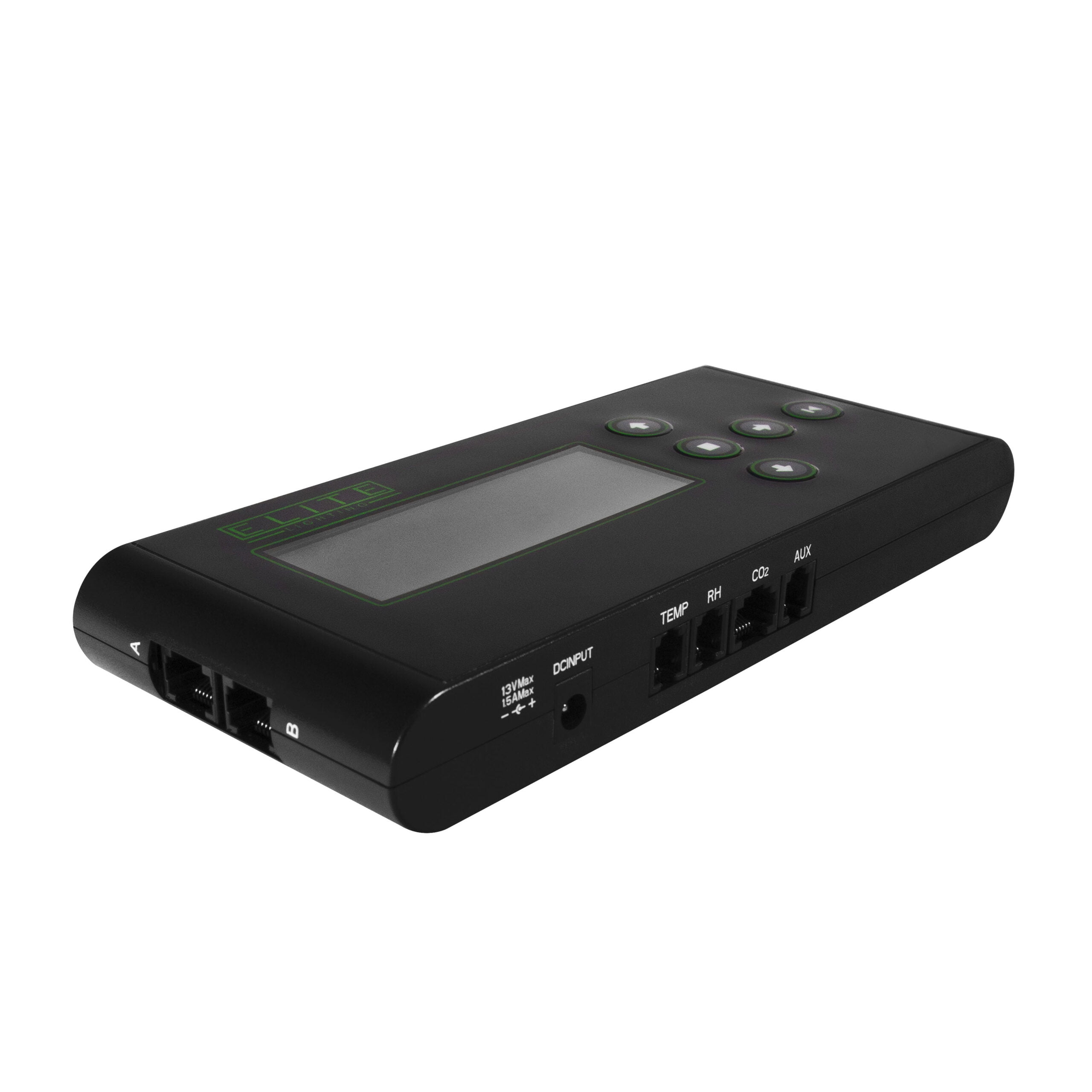

Elite Digital Lighting Controller

The ELITE Digital Lighting Controller has been designed to enable users to control several elements of their growing environment from one device. Control the temperature, relative humidity, light cycle and intensity all from the controller. This controller is compatible with the Elite 1000W Full Fixtures.

Supports up to 40 fixtures in a chain

RISE/FALL
Simulates natural growing conditions with the “RISE/FALL” option, allowing plants to gradually warm up and cool down.

SENSOR CALIBRATION
All sensors (TEMP/RH/CO2) can be calibrated – it detects sensor failures and when a connection is not set-up properly it will automatically show a warning in the display.

AUTO SAVE-TEMP
The “AUTO-SAVE TEMP” option can sense when indoor temperatures are getting too high and respond automatically by dimming the lamps. It will reduce environmental stress and crop damage.

SHUT DOWN-TEMP
The “SHUT DOWN-TEMP” is an extra safety feature that will shut down all lighting in the room when the temperature is not reducing after the “Auto-Save Temp” has set in.

C02 PPM MANAGEMENT
With the “CO2-SET ppm” option, the controller is not only managing the lights but also managing the CO2 levels in the room. Due to the very accurate Dual Beam Sense Air CO2 sensor, both CO2 generators and cool CO2 installations can be controlled.

Box Contents:

• Elite Lighting Digital Controller
• AC Adapter 240V
• Temperature Sensor

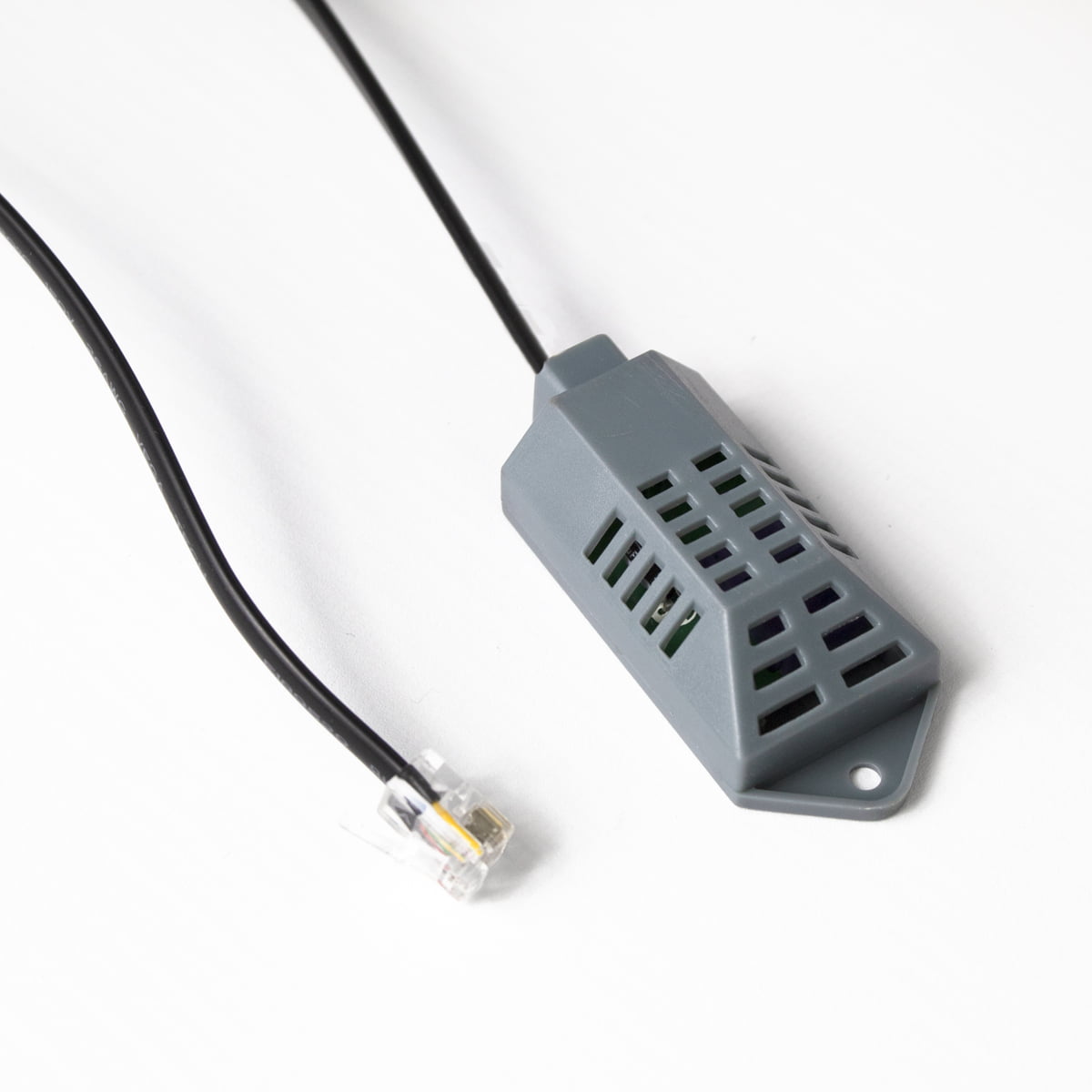

• Humidity Sensor
